LG HB6 1S1P Battery Pack

18650HB6, 2Ah, 3.65V, 10A

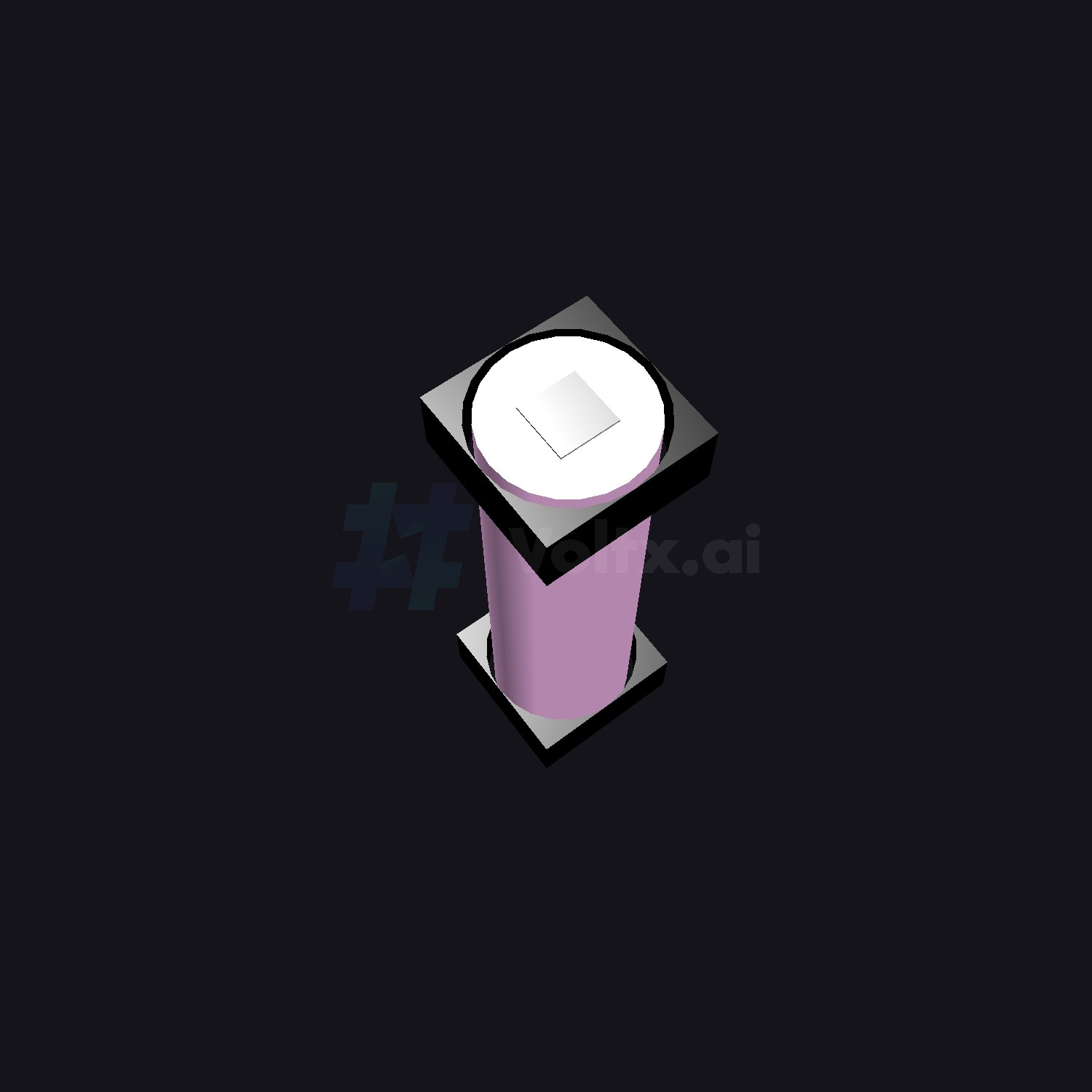

main images

LG HB6 1S1P Specifications

Configuration 1S1P
Cell LG 18650HB6
Cell size 18650
Cell chemistry
Weight 0.0 kg
Length 2.09 cm
Width 2.09 cm
Height 6.79 cm
Charge voltage 4.20 V
End voltage 2.00 V
Capacity 1500 mAh
Maximum continuous discharge current 10 A
Charge current 4 A
Watts 37 W
Energy 5 Wh
Volumetric energy density 288.55 Wh/L
Gravimetric energy density 104.17 Wh/kg
Charge time 5 hours
Operating temperature -20 ~ 75 °C

Calculations

Q. How to calculate the voltage for 1S1P LG HB6 pack?

A. Take the nominal voltage of the LG HB6(3.65V) and multiply it by series connections (1) for a total of 3.65V.

Q. How to calculate the capacity and current for 1S1P LG HB6 pack?

A. Take the nominal capacity of the LG HB6(1.50Ah) and max. continuous discharge current (30 A) and multiply them by the parallel connections (1) for a total of 1.50Ah and 30A.
