LG HB6 1S2P Battery Pack

18650HB6, 3Ah, 3.65V, 4A

main images

LG HB6 1S2P Specifications

Configuration 1S2P
Cell LG 18650HB6
Cell size 18650
Cell chemistry
Weight 0.1 kg
Length 4.22 cm
Width 2.09 cm
Height 6.79 cm
Charge voltage 4.20 V
End voltage 2.00 V
Capacity 3000 mAh
Maximum continuous discharge current 4 A
Charge current 4 A
Watts 15 W
Energy 11 Wh
Volumetric energy density 317.40 Wh/L
Gravimetric energy density 114.58 Wh/kg
Charge time 5 hours
Operating temperature -20 ~ 75 °C

Size Variations

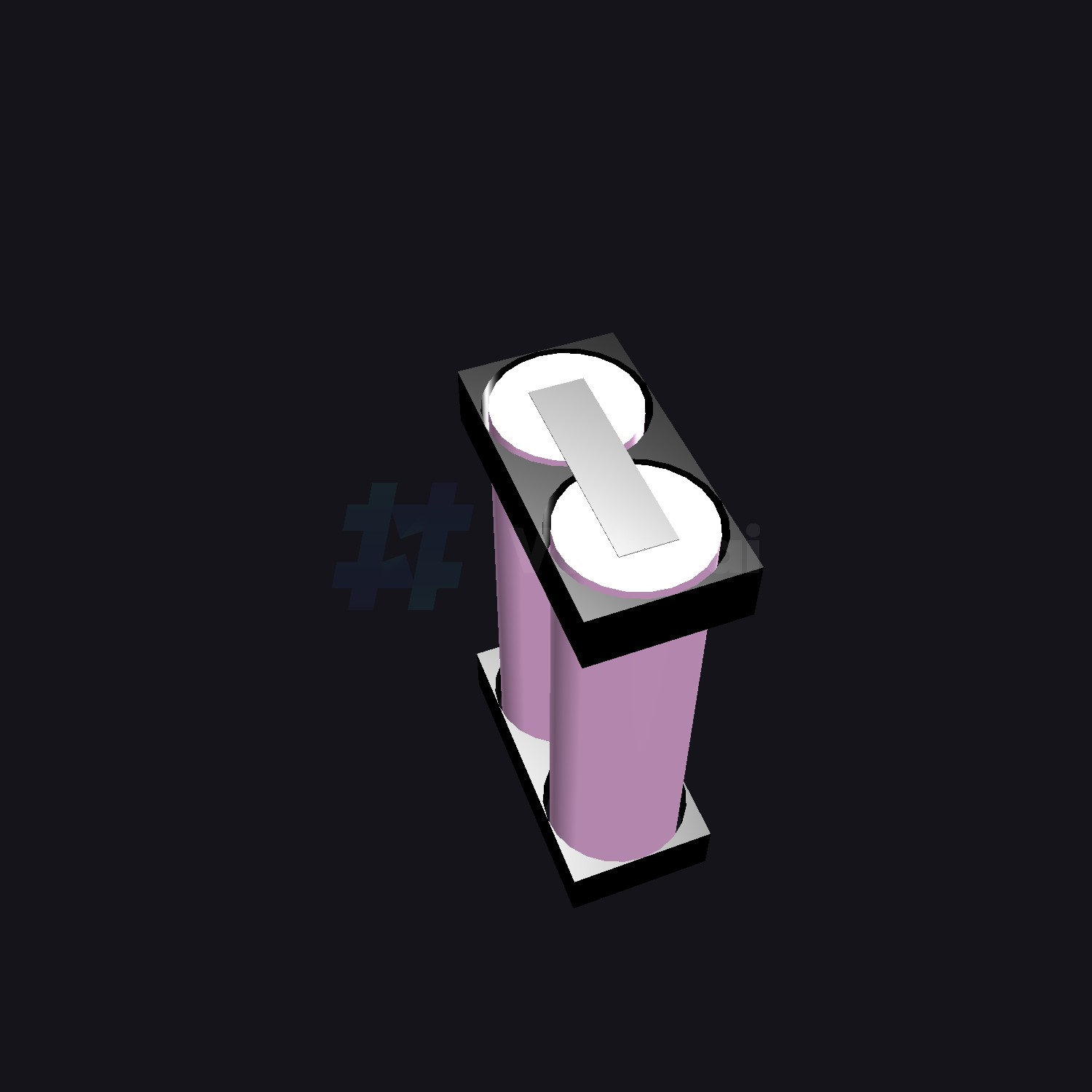

LG HB6 1S2P 1-layer in parablock 1x2

Length 29.24 mm
Width 41.14 mm
Height 67.94 mm

LG HB6 1S2P 1-layer in parablock 1x2

Length 22.04 mm
Width 41.14 mm
Height 67.94 mm

LG HB6 1S2P 1-layer in parablock 1x2

Length 22.04 mm
Width 41.14 mm
Height 67.94 mm

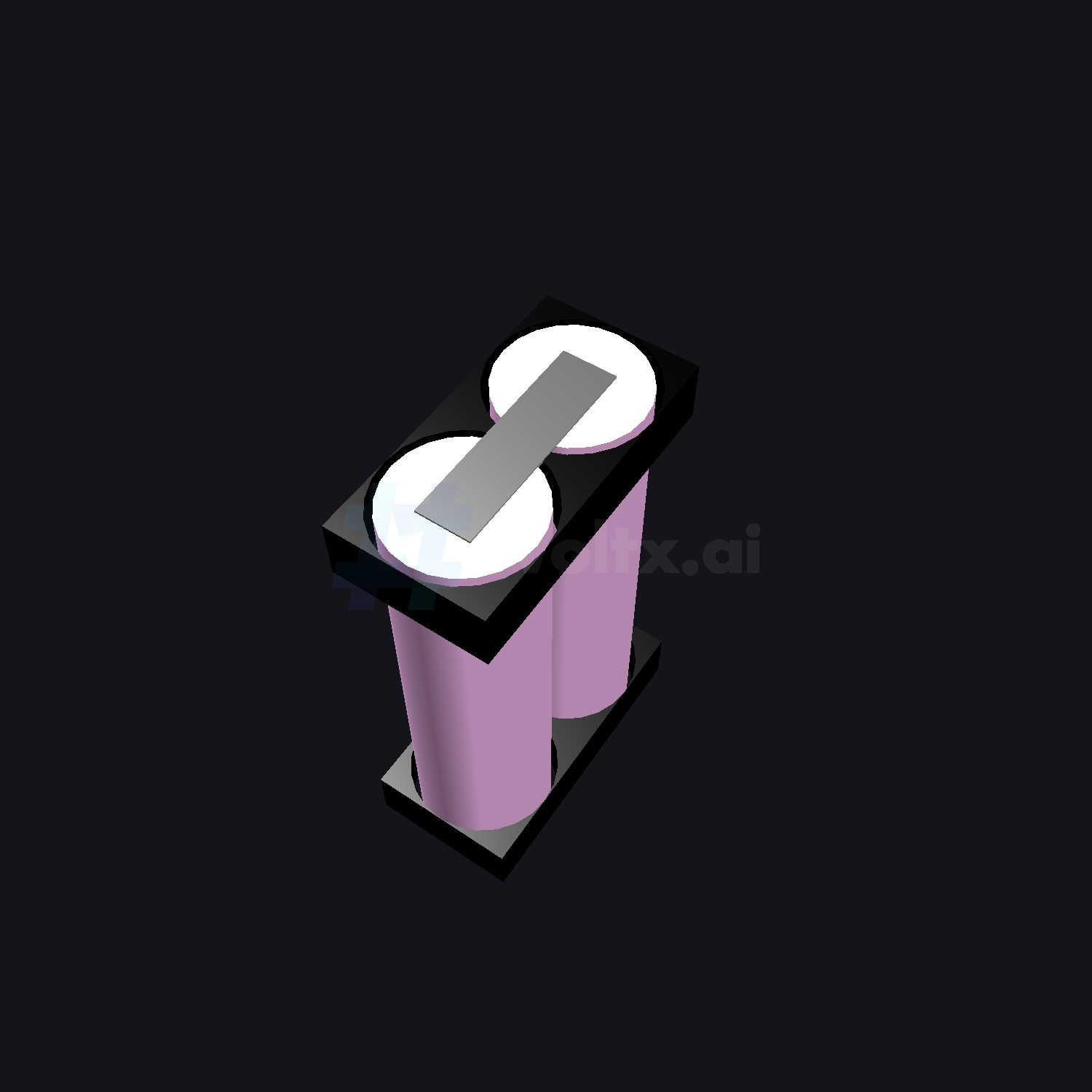

LG HB6 1S2P 1-layer in parablock 2x1

Length 42.24 mm
Width 20.94 mm
Height 67.94 mm

LG HB6 1S2P 1-layer in parablock 2x1

Length 49.44 mm
Width 20.94 mm
Height 67.94 mm

LG HB6 1S2P 1-layer in parablock 2x1

Length 42.24 mm
Width 20.94 mm
Height 67.94 mm

LG HB6 1S2P 1-layer in parablock 2x1

Length 42.24 mm
Width 20.94 mm
Height 67.94 mm

Calculations

Q. How to calculate the voltage for 1S2P LG HB6 pack?

A. Take the nominal voltage of the LG HB6 (3.65V) and multiply it by series connections (1) for a total of 3.65V.

Q. How to calculate the capacity and current for 1S2P LG HB6 pack?

A. Take the nominal capacity of the LG HB6 (1.50Ah) and max. continuous discharge current (30 A) and multiply them by the parallel connections (2) for a total of 3.00Ah and 60A.
