LG HB6 2S1P Battery Pack

18650HB6, 2Ah, 7.3V, 10A

main images

LG HB6 2S1P Specifications

Configuration 2S1P
Cell LG 18650HB6
Cell size 18650
Cell chemistry
Weight 0.1 kg
Length 2.09 cm
Width 2.22 cm
Height 13.61 cm
Charge voltage 8.40 V
End voltage 4.00 V
Capacity 1500 mAh
Maximum continuous discharge current 10 A
Charge current 4 A
Watts 73 W
Energy 11 Wh
Volumetric energy density 317.40 Wh/L
Gravimetric energy density 114.58 Wh/kg
Charge time 5 hours
Operating temperature -20 ~ 75 °C

Size Variations

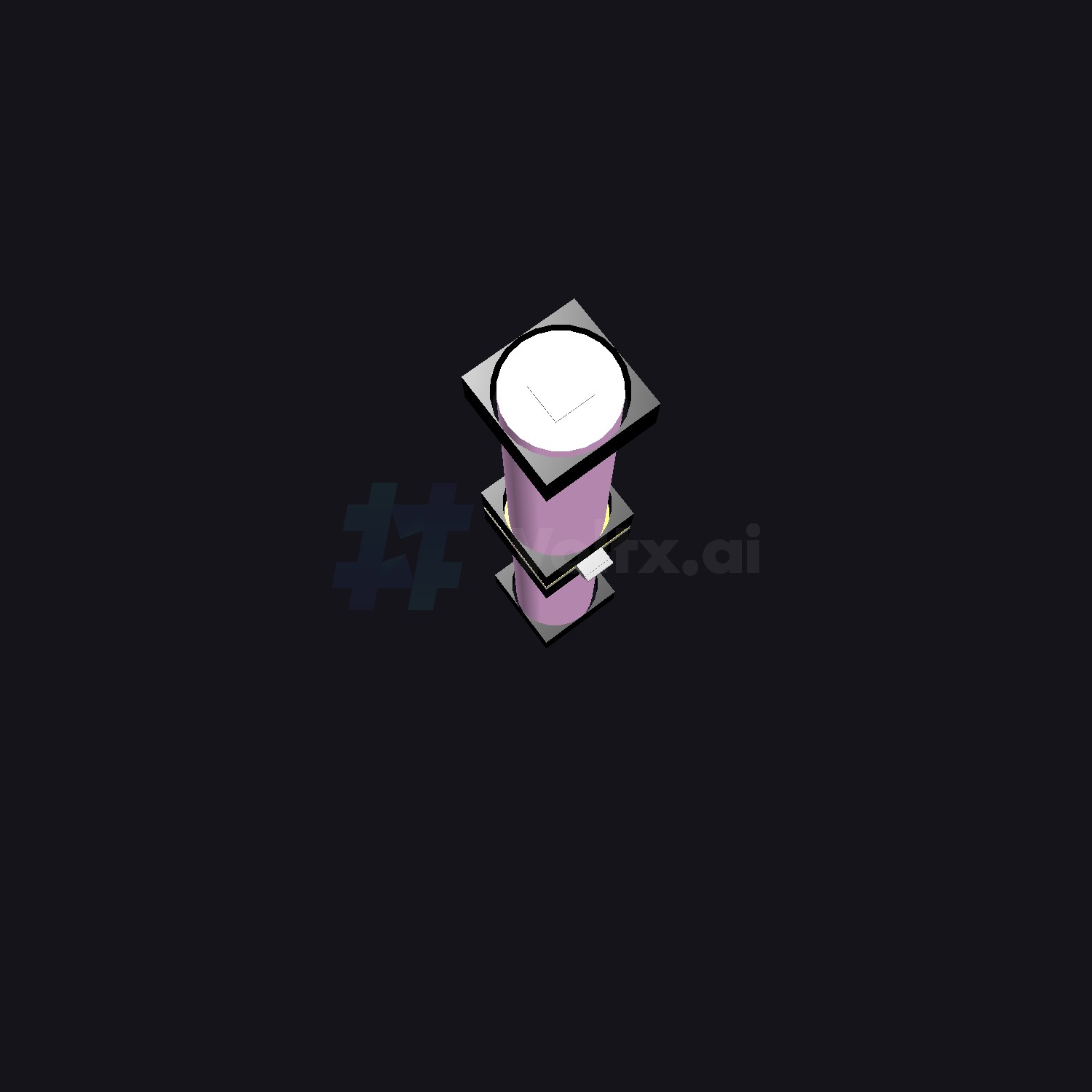

LG HB6 2S1P 2-layer in parablock 1x1

Length 20.9 mm
Width 22.2 mm
Height 136.1 mm

Calculations

Q. How to calculate the voltage for 2S1P LG HB6 pack?

A. Take the nominal voltage of the LG HB6 (3.65V) and multiply it by series connections (2) for a total of 7.30V.

Q. How to calculate the capacity and current for 2S1P LG HB6 pack?

A. Take the nominal capacity of the LG HB6 (1.50Ah) and max. continuous discharge current (30 A) and multiply them by the parallel connections (1) for a total of 1.50Ah and 30A.
