LG HB6 2S2P Battery Pack

18650HB6, 3Ah, 7.3V, 10A

main images

LG HB6 2S2P Specifications

Configuration 2S2P
Cell LG 18650HB6
Cell size 18650
Cell chemistry
Weight 0.2 kg
Length 4.11 cm
Width 2.09 cm
Height 13.61 cm
Charge voltage 8.40 V
End voltage 4.00 V
Capacity 3000 mAh
Maximum continuous discharge current 10 A
Charge current 8 A
Watts 73 W
Energy 22 Wh
Volumetric energy density 317.40 Wh/L
Gravimetric energy density 114.58 Wh/kg
Charge time 5 hours
Operating temperature -20 ~ 75 °C

Size Variations

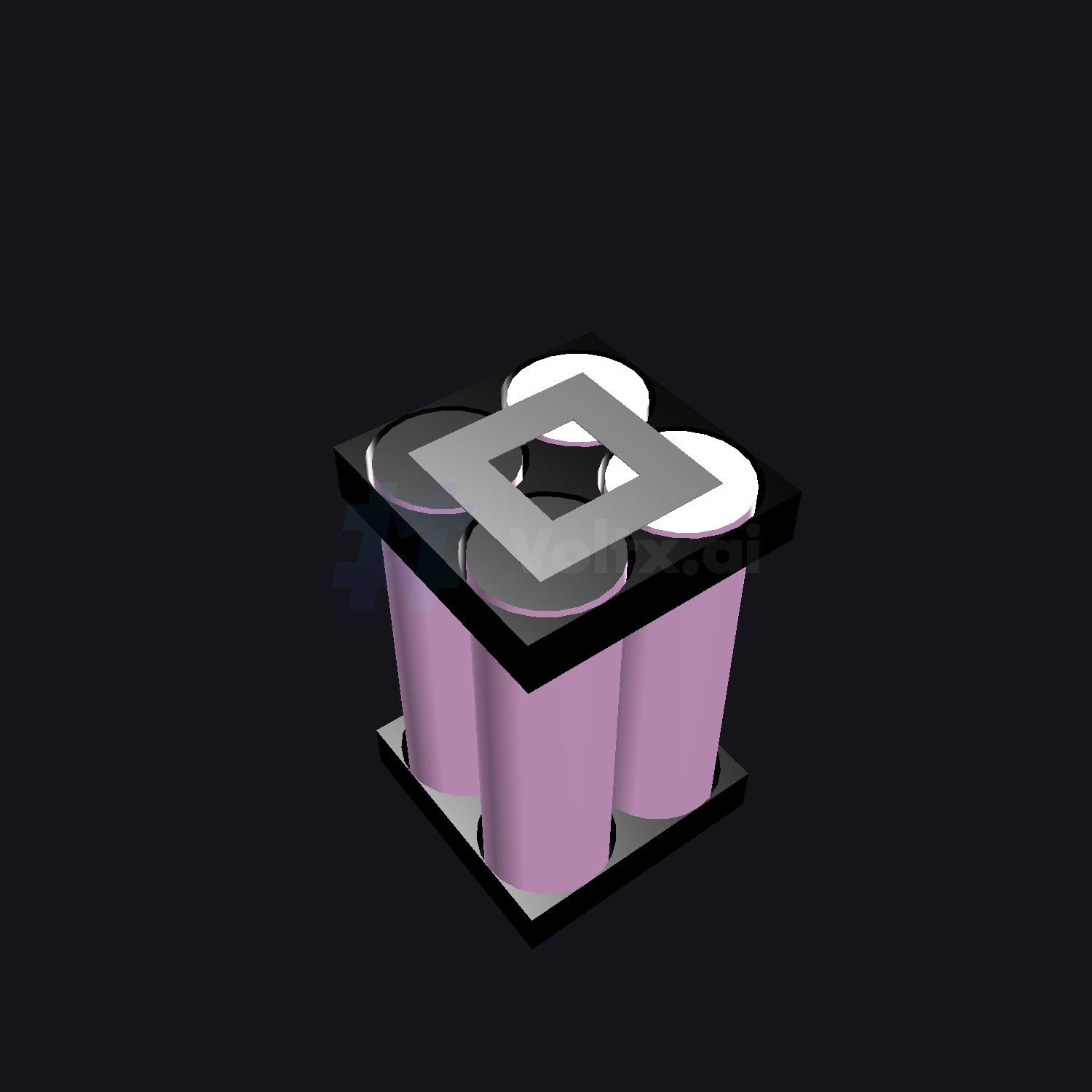

LG HB6 2S2P 1-layer in parablock 2x1

Length 81.6 mm
Width 21 mm
Height 68 mm

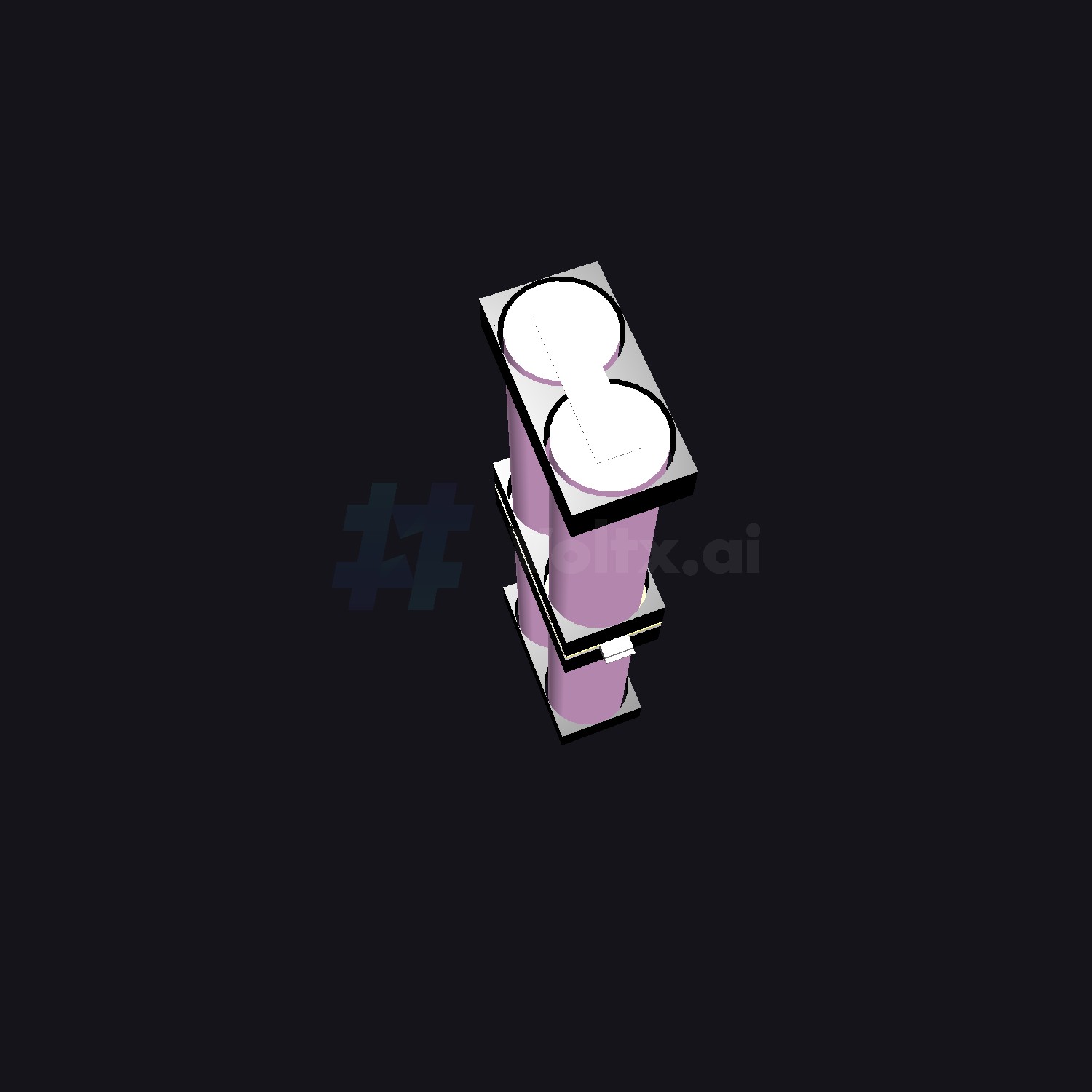

LG HB6 2S2P 2-layer in parablock 1x2

Length 20.94 mm
Width 41.14 mm
Height 136.14 mm

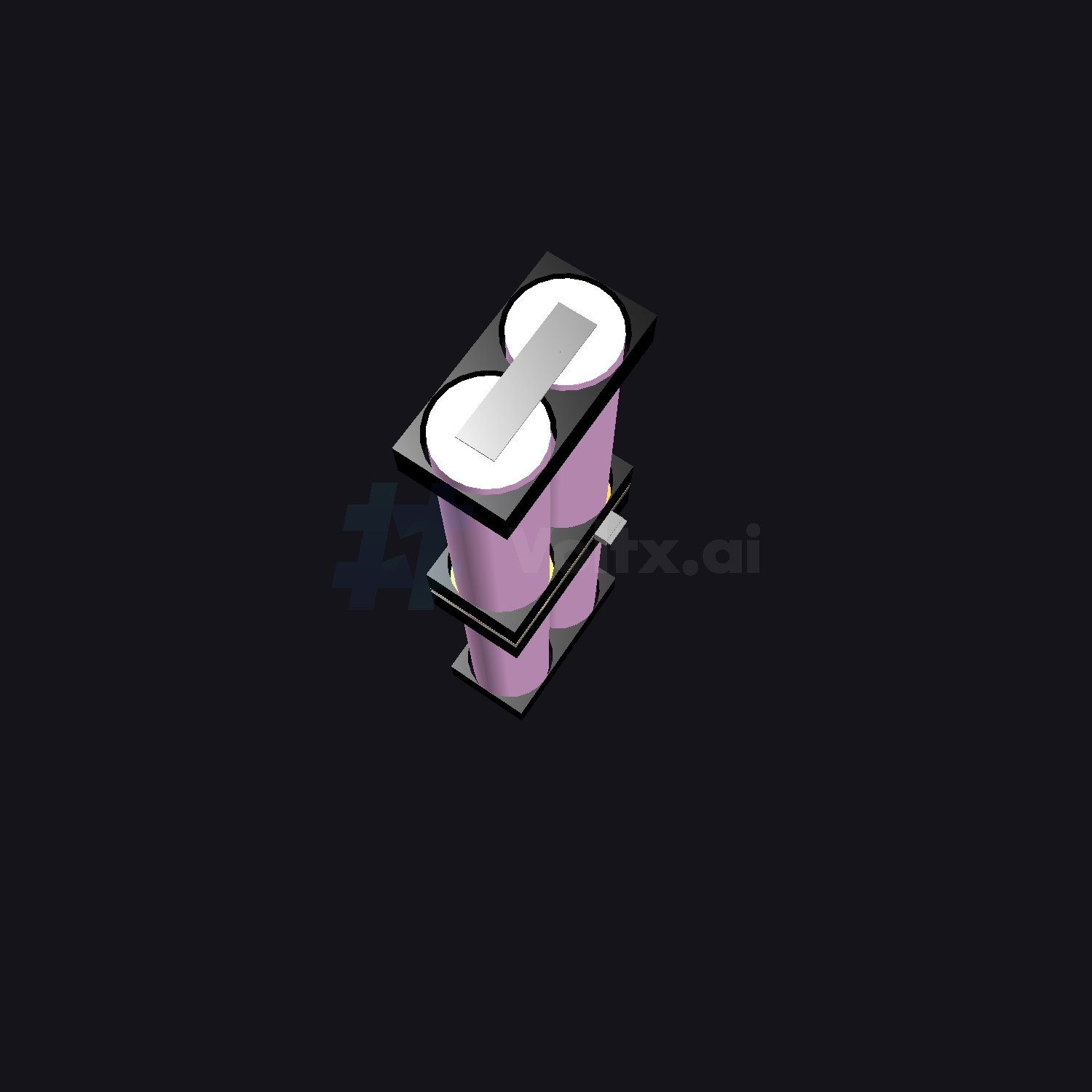

LG HB6 2S2P 2-layer in parablock 2x1

Length 41.14 mm
Width 20.94 mm
Height 136.14 mm

Calculations

Q. How to calculate the voltage for 2S2P LG HB6 pack?

A. Take the nominal voltage of the LG HB6(3.65V) and multiply it by series connections (2) for a total of 7.30V.

Q. How to calculate the capacity and current for 2S2P LG HB6 pack?

A. Take the nominal capacity of the LG HB6(1.50Ah) and max. continuous discharge current (30 A) and multiply them by the parallel connections (2) for a total of 3.00Ah and 60A.
