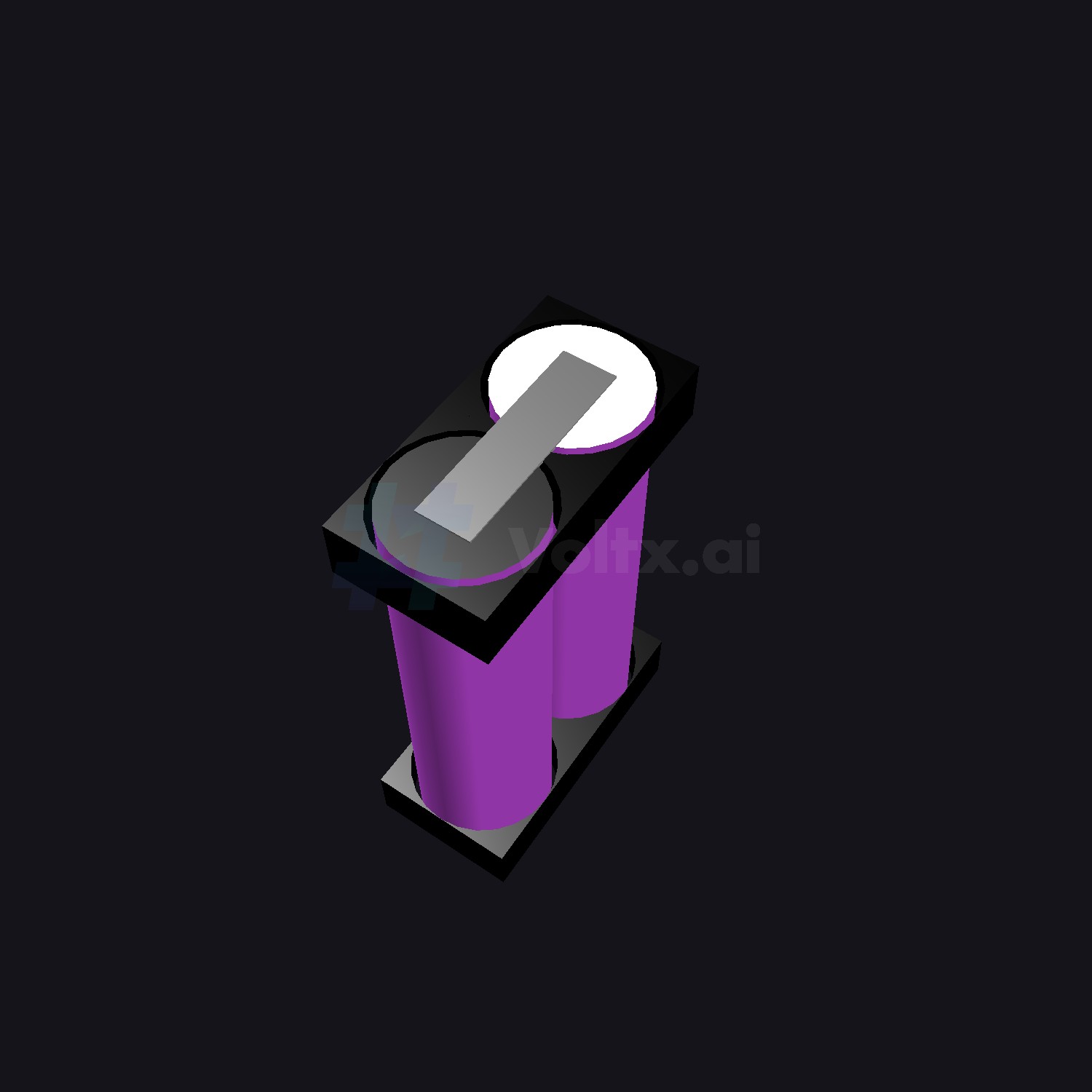

LG HD2 2S1P Specifications
| Configuration | 2S1P |
| Cell | LG 18650HD2 |
| Cell size | 18650 |
| Cell chemistry | |
| Weight | 0.1 kg |
| Length | 2.09 cm |
| Width | 2.22 cm |
| Height | 13.61 cm |
| Charge voltage | 8.40 V |
| End voltage | 5.00 V |
| Capacity | 2000 mAh |
| Maximum continuous discharge current | 10 A |
| Charge current | 4 A |
| Watts | 73 W |
| Energy | 15 Wh |
| Volumetric energy density | 428.15 Wh/L |
| Gravimetric energy density | 156.25 Wh/kg |
| Charge time | 5 hours |
| Operating temperature | -20 ~ 70 °C |
Size Variations

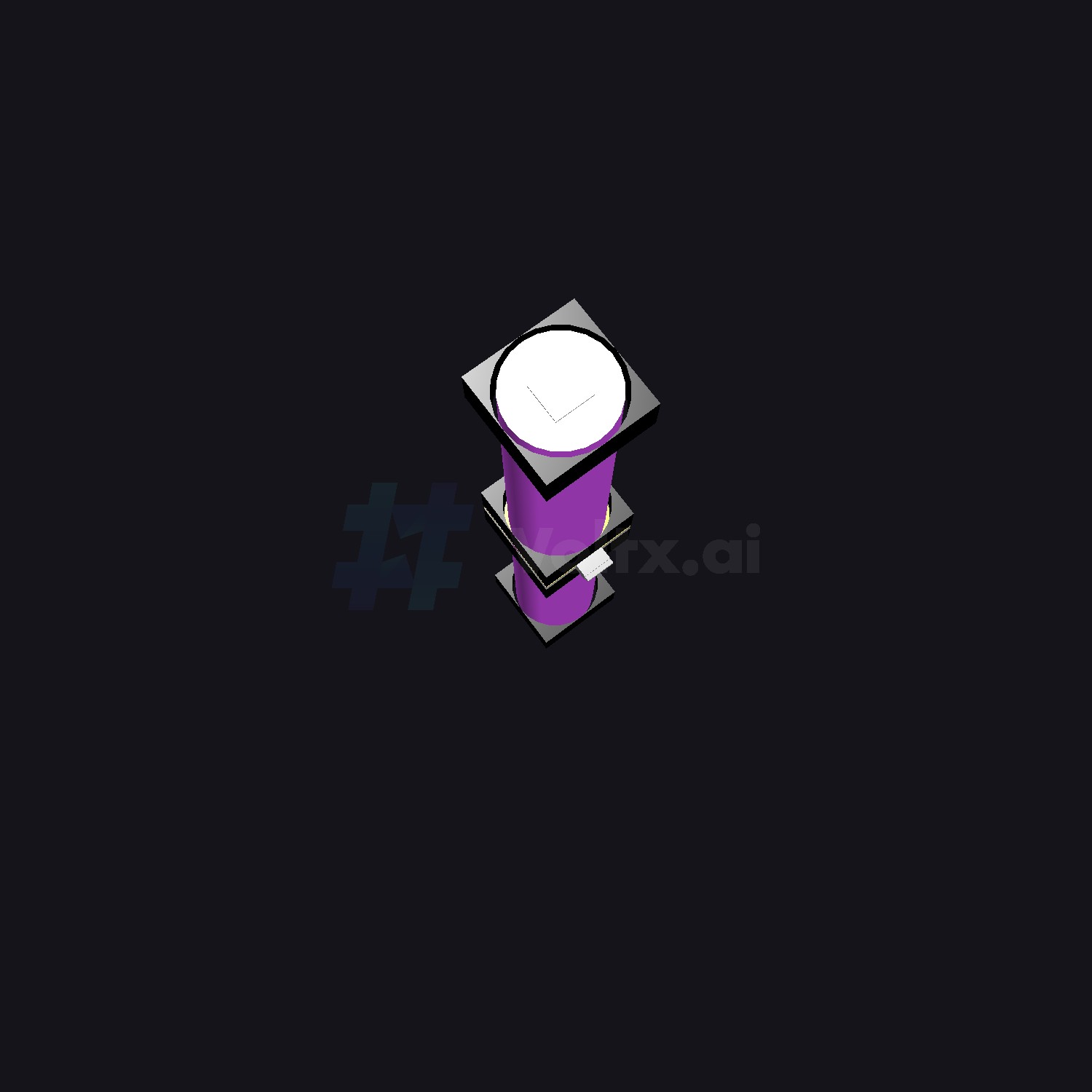

LG HD2 2S1P 2-layer in parablock 1x1
| Length | 20.9 mm |
| Width | 22.2 mm |
| Height | 136.1 mm |
Calculations
Q. How to calculate the voltage for 2S1P LG HD2 pack?
A. Take the nominal voltage of the LG HD2 (3.65V) and multiply it by series connections (2) for a total of 7.30V.
Q. How to calculate the capacity and current for 2S1P LG HD2 pack?
A. Take the nominal capacity of the LG HD2 (2.00Ah) and max. continuous discharge current (25 A) and multiply them by the parallel connections (1) for a total of 2.00Ah and 25A.
