LG HD2 2S3P Battery Pack

18650HD2, 6Ah, 7.3V, 10A

main images

LG HD2 2S3P Specifications

Configuration 2S3P
Cell LG 18650HD2
Cell size 18650
Cell chemistry
Weight 0.3 kg
Length 6.14 cm
Width 2.10 cm
Height 13.62 cm
Charge voltage 8.40 V
End voltage 5.00 V
Capacity 6000 mAh
Maximum continuous discharge current 10 A
Charge current 10 A
Watts 73 W
Energy 44 Wh
Volumetric energy density 418.64 Wh/L
Gravimetric energy density 152.78 Wh/kg
Charge time 5 hours
Operating temperature -20 ~ 70 °C

Size Variations

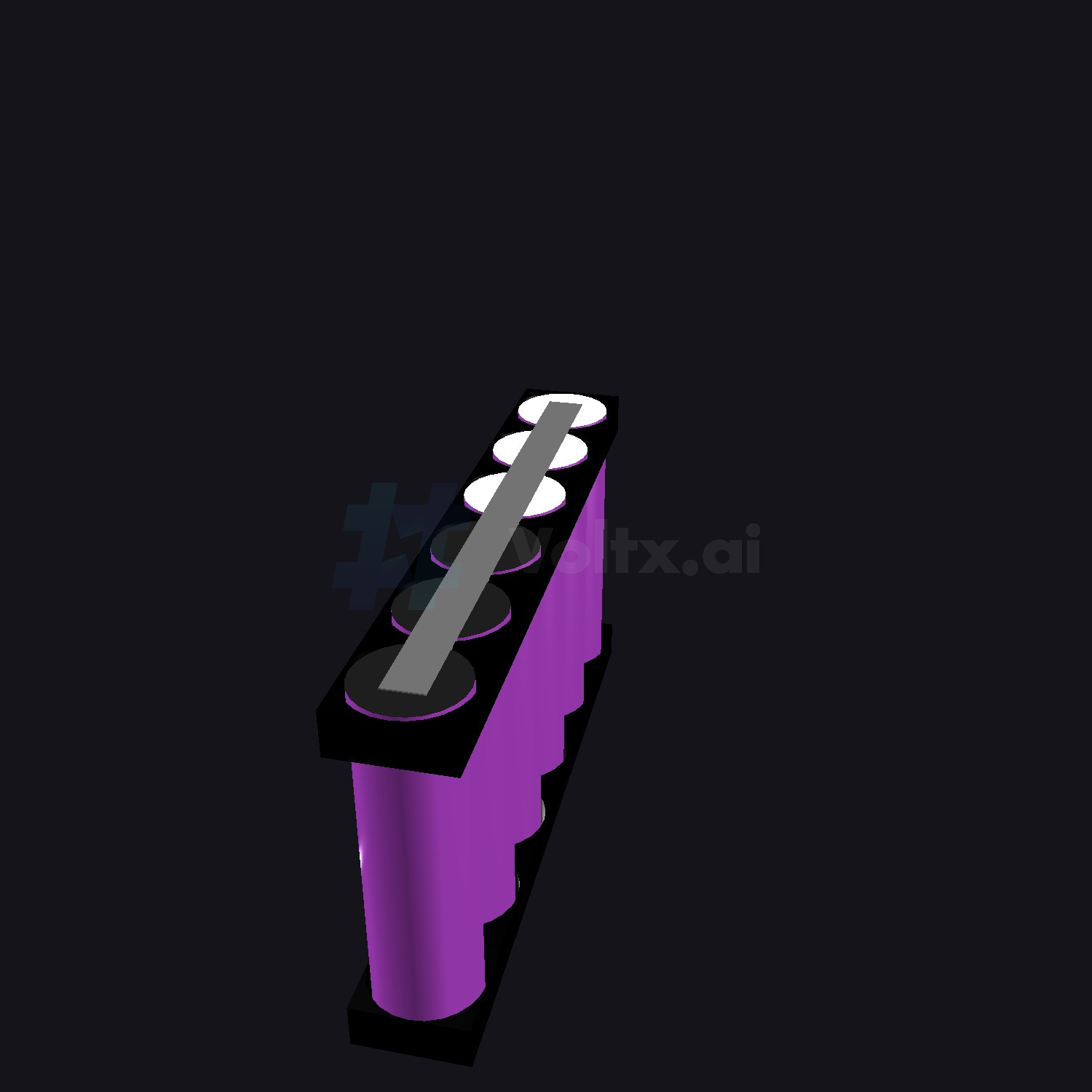

LG HD2 2S3P 1-layer in parablock 3x1

Length 122 mm
Width 21 mm
Height 68 mm

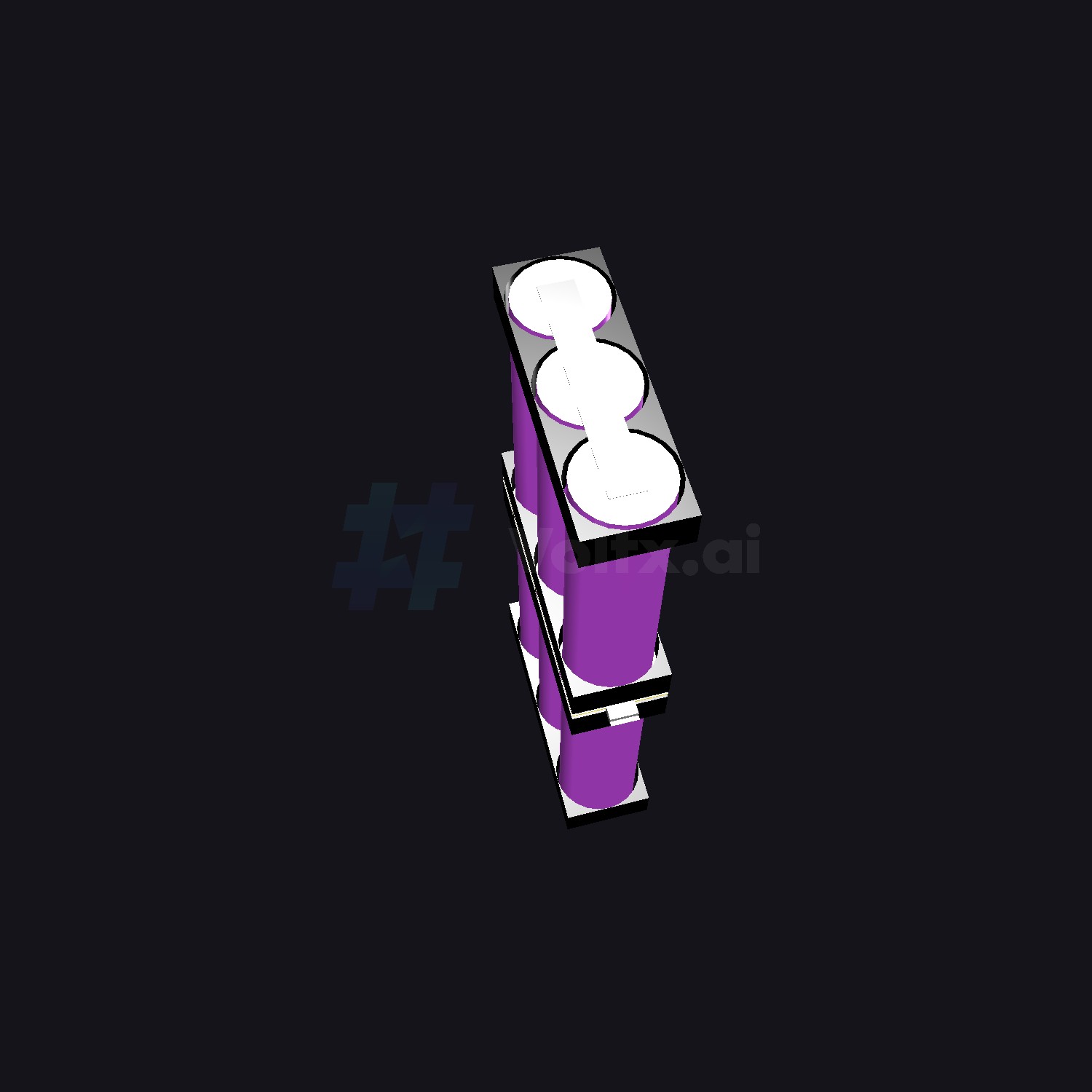

LG HD2 2S3P 2-layer in parablock 1x3

Length 20.96 mm
Width 61.36 mm
Height 136.16 mm

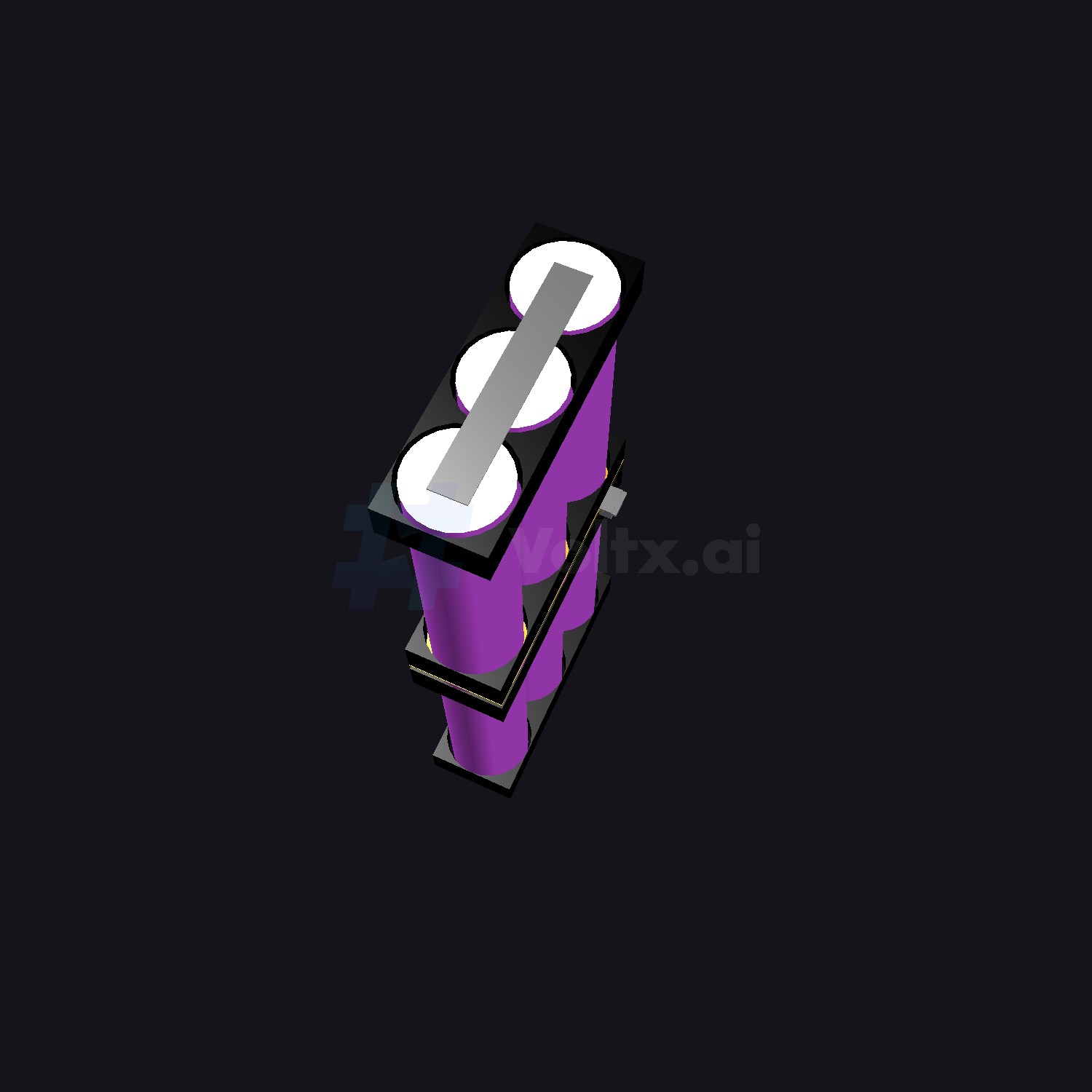

LG HD2 2S3P 2-layer in parablock 3x1

Length 61.36 mm
Width 20.96 mm
Height 136.16 mm

Calculations

Q. How to calculate the voltage for 2S3P LG HD2 pack?

A. Take the nominal voltage of the LG HD2(3.65V) and multiply it by series connections (2) for a total of 7.30V.

Q. How to calculate the capacity and current for 2S3P LG HD2 pack?

A. Take the nominal capacity of the LG HD2(2.00Ah) and max. continuous discharge current (25 A) and multiply them by the parallel connections (3) for a total of 6.00Ah and 75A.

Built by Voltaplex Energy

We believe accessible battery automation software is critical for fighting climate change. Voltaplex can manufacture packs built with Voltx.ai software.
